Description
The UVT5500SS UV Water Disinfection System provides reliable, chemical-free protection for household and rural water supplies.
Ultraviolet light passes through the water inside the stainless-steel chamber, disrupting the DNA of harmful microorganisms and preventing them from reproducing. The system is designed to inactivate up to 99.99% of bacteria and viruses, including organisms such as E. coli, Cryptosporidium and Giardia.
UV treatment does not add chemicals to the water or change its taste, odour or chemistry. The axial-flow chamber design provides effective disinfection within a compact footprint, while the single-ended lamp design allows for easier lamp replacement and quartz-sleeve servicing.
The electronic controller includes a lamp-failure alarm and lamp-replacement reminder with an LED countdown display. A visual lamp indicator also makes it easy to confirm that the UV lamp is operating.

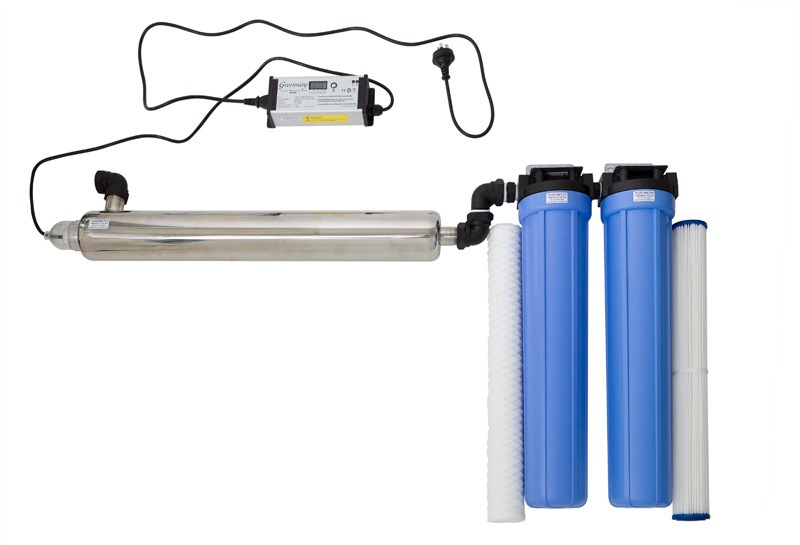

Effective pre-filtration is essential for UV performance. This package includes a 20-micron washable sediment cartridge and a 1-micron string-wound sediment cartridge installed in standard 20-inch filter housings. The pre-filters reduce sediment and suspended particles before the water reaches the UV chamber, supporting effective UV exposure and helping keep the quartz sleeve cleaner.
Key Features
Chemical-free UV water disinfection
Designed to inactivate up to 99.99% of bacteria and viruses
Includes a 20mircon washable filter and 1-micron string-wound sediment pre-filter, plus 2 standard 20-inch filter housing with mounting brackets
Reduces sediment before UV treatment
Does not alter the taste, odour or chemistry of the water
Compact axial-flow design
304 stainless-steel disinfection chamber
Long-life, hard-glass UV lamp
Single-ended lamp for easier servicing
Lamp-failure alarm
Lamp-replacement reminder with LED countdown display
Visual indicator confirms UV lamp operation
Universal 100-240V electronic controller
Specifications
Flow rate – 58 lpm
Chamber material – 304 stainless steel
Chamber size – 89mm diameter x 708mm long
Inlet/outlet port sizes – combination ¾-inch FNPT / 1-inch MNPT
Max operating pressure – 125 psi
Input Voltage – 100-240V
UV Lamp Power – 30W
Ballast dimensions – 203 × 76 × 51 mm
20 & 1 Micron pre filtration
Whats included

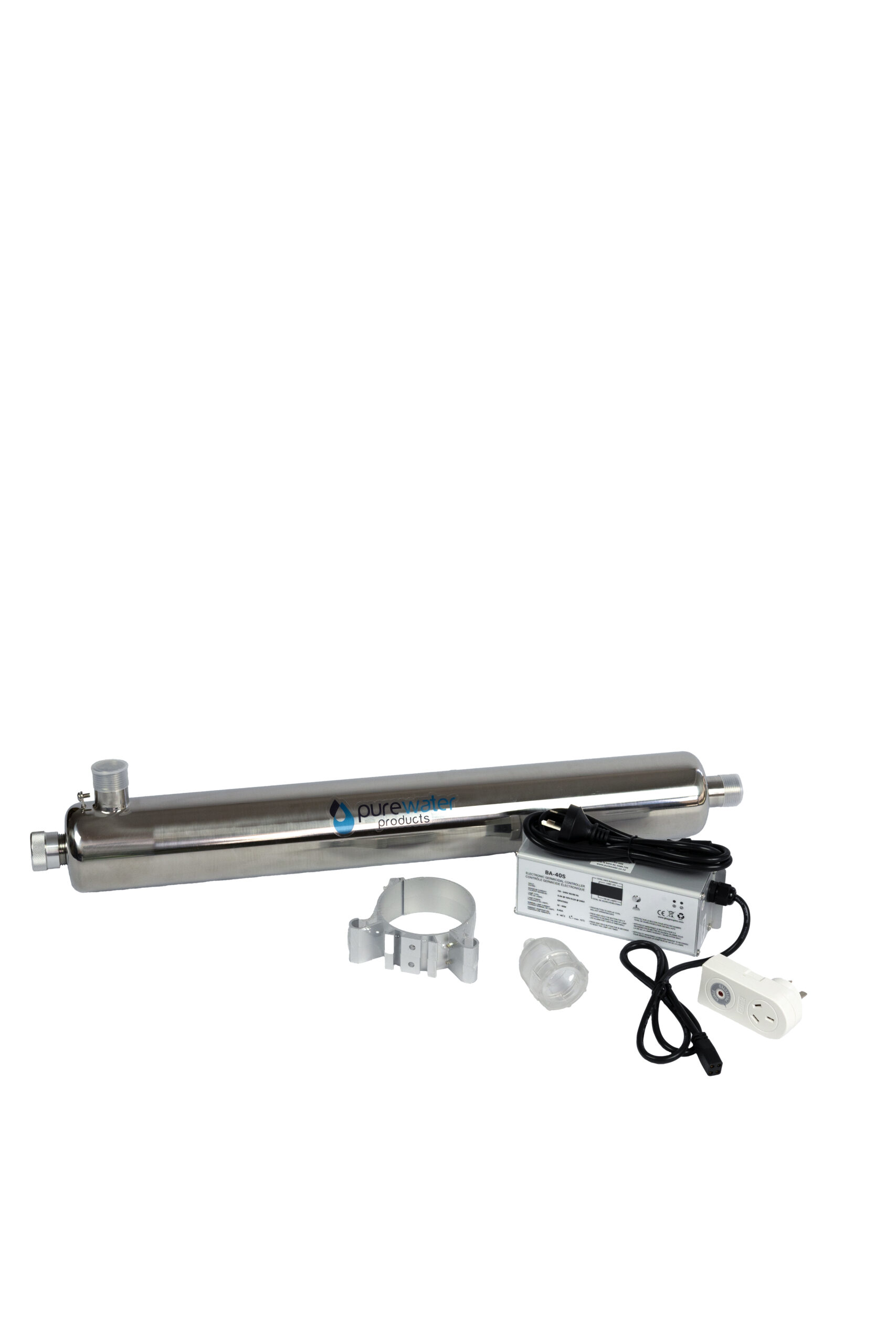

Stainless-steel UV chamber
Chamber mounting brackets
UV lamp – UVL5500
Quartz sleeve – QS5500
Electronic controller/ballast – UVPOWER5500
Surge protector
UV lamp dust cap
20-micron washable pleated sediment cartridge
1-micron string-wound sediment cartridge
2x Standard 20-inch filter housing
2x Pre-filter housing mounting bracket
Important: UV performance depends on water quality, clarity, flow rate and UV transmittance. Appropriate pre-treatment is required for water containing sediment, colour, iron, manganese or other UV-interfering contaminants.
