Description
The UVT5500SS UV Water Disinfection System provides reliable, chemical-free protection for household and rural water supplies.
Ultraviolet light passes through the water inside the stainless-steel chamber, disrupting the DNA of harmful microorganisms and preventing them from reproducing. The system is designed to inactivate up to 99.99% of bacteria and viruses, including organisms such as E. coli, Cryptosporidium and Giardia.
UV treatment does not add chemicals to the water or change its taste, odour or chemistry. The axial-flow chamber design provides effective disinfection within a compact footprint, while the single-ended lamp design allows for easier lamp replacement and quartz-sleeve servicing.
The electronic controller includes a lamp-failure alarm and lamp-replacement reminder with an LED countdown display. A visual lamp indicator also makes it easy to confirm that the UV lamp is operating.
Effective pre-filtration is essential for UV performance. This package includes a 1-micron string-wound sediment cartridge installed in a standard 20-inch filter housing. The pre-filter helps reduce fine sediment and suspended particles before the water reaches the UV chamber, supporting effective UV exposure and helping keep the quartz sleeve cleaner.
Packages including pre filtration also available.
Key Features
Chemical-free UV water disinfection
Designed to inactivate up to 99.99% of bacteria and viruses
Includes a 1-micron string-wound sediment pre-filter and standard 20-inch filter housing with mounting bracket
Reduces sediment before UV treatment
Does not alter the taste, odour or chemistry of the water
Compact axial-flow design
304 stainless-steel disinfection chamber
Long-life, hard-glass UV lamp
Single-ended lamp for easier servicing
Lamp-failure alarm
Lamp-replacement reminder with LED countdown display
Visual indicator confirms UV lamp operation
Universal 100-240V electronic controller
Specifications
Flow rate – 58 lpm
Chamber material – 304 stainless steel
Chamber size – 89mm diameter x 708mm long
Inlet/outlet port sizes – combination ¾-inch FNPT / 1-inch MNPT
Max operating pressure – 125 psi
Input Voltage – 100-240V
UV Lamp Power – 30W
Ballast dimensions – 203 × 76 × 51 mm
1 Micron pre filtration

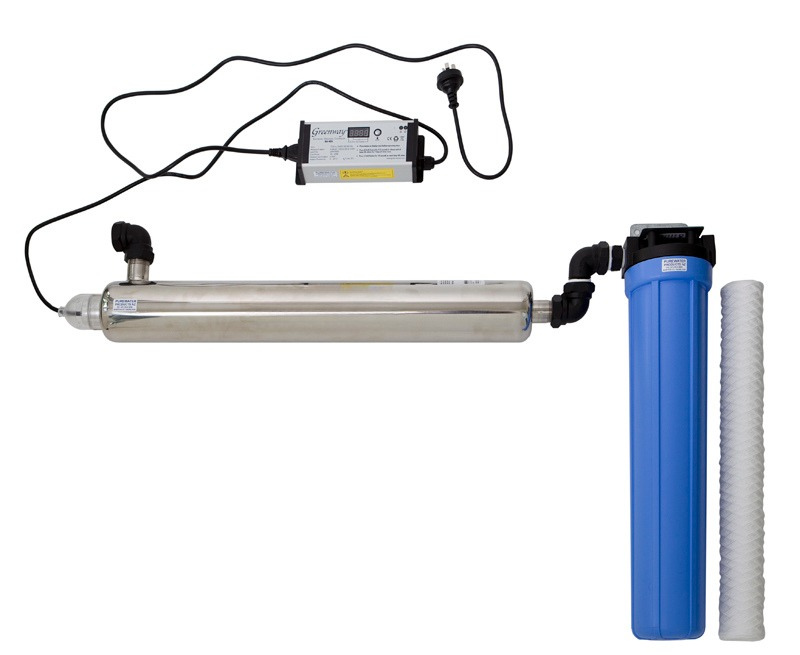

Whats included
Stainless-steel UV chamber
Chamber mounting brackets
UV lamp – UVL5500
Quartz sleeve – QS5500
Electronic controller/ballast – UVPOWER5500
Surge protector
UV lamp dust cap
1-micron string-wound sediment cartridge
Standard 20-inch filter housing
Pre-filter housing mounting bracket
Important: UV performance depends on water quality, clarity, flow rate and UV transmittance. Appropriate pre-treatment is required for water containing sediment, colour, iron, manganese or other UV-interfering contaminants.
